Wiring Duct(slotted)
CHS
| Size: | |
|---|---|
| Quantity: | |
Product Description
◆ Material：made from PVC(grey), good insulation and heat-resistingup to 85℃.
◆ Struction：made up of duct bottom and lid, with two out-holes designd at the bottom.

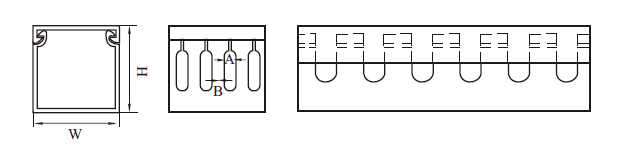

| 编 号 Item NO. | 高×宽 (mm) | 厚度 (mm) | 孔宽(A) (mm) | 孔距(B) | 电 线 容 量 Contained Wire(1.5² ) |
| PXC-2015 | 20×15 | 1.5 | 4 | 6 | 5-10PCS |
| PXC-2020 | 20×20 | 1.5 | 6 | 8 | 10-15PCS |
| PXC-2025 | 20×25 | 1.5 | 6 | 8 | 10-20PCS |
| PXC-2525 | 25×25 | 1.5 | 4 | 6 | 10-25PCS |
| PXC-2540 | 25×40 | 1.5 | 8 | 10 | 20-40PCS |
| PXC-2545 | 25×45 | 1.5 | 8 | 10 | 25-40PCS |
| PXC-2560 | 25×60 | 1.5 | 8 | 10 | 45-60PCS |
| PXC-2580 | 25×80 | 1.5 | 8 | 10 | 50-70PCS |
| PXC-3015 | 30×15 | 1.5 | 0 | 0 | 5-15PCS |
| PXC-3020 | 30×20 | 1.5 | 4 | 6 | 10-20PCS |
| PXC-3025 | 30×25 | 1.5 | 4 | 6 | 15-25PCS |
| PXC-3030 | 30×30 | 1.5 | 4 | 6 | 20-30PCS |
| PXC-3035 | 30×35 | 1.5 | 4 | 6 | 30-45PCS |
| PXC-3040 | 30×40 | 1.5 | 4 | 6 | 35-50PCS |
| PXC-3050 | 30×50 | 1.5 | 4 | 6 | 45-60PCS |
| PXC-3525 | 35×25 | 1.5 | 4 | 6 | 25-35PCS |
| PXC-3535 | 35×35 | 1.5 | 4 | 6 | 40-55PCS |
| PXC-4025 | 40×25 | 1.5 | 6 | 8 | 20-40PCS |
| PXC-4030 | 40×30 | 1.5 | 6 | 8 | 35-50PCS |
| PXC-4035 | 40×35 | 1.5 | 6 | 8 | 40-50PCS |
| PXC-4040 | 40×40 | 1.5 | 6 | 8 | 45-55PCS |
| PXC-4060 | 40×60 | 1.5 | 6 | 8 | 60-80PCS |
| PXC-4080 | 40×80 | 1.5 | 6 | 8 | 100-120PCS |
| PXC-4525 | 45×25 | 1.5 | 6 | 9 | 25-40PCS |
| PXC-4535 | 45×35 | 1.5 | 6 | 9 | 40-55PCS |
| PXC-4545 | 45×45 | 1.5 | 6 | 9 | 60-70PCS |
| PXC-4565 | 45×65 | 1.5 | 6 | 9 | 90-100PCS |
| PXC-5015 | 50×15 | 1.5 | 0 | 0 | 25-35PCS |
| PXC-5025 | 50×25 | 1.5 | 6 | 9 | 25-45PCS |
| PXC-5030 | 50×30 | 1.5 | 6 | 9 | 30-55PCS |
| PXC-5035 | 50×35 | 1.5 | 6 | 9 | 50-60PCS |
| PXC-5040 | 50×40 | 1.5 | 6 | 9 | 60-70PCS |
| PXC-5045 | 50×45 | 1.5 | 6 | 9 | 70-85PCS |
| PXC-5050 | 50×50 | 1.5 | 6 | 9 | 90-100PCS |
| PXC-5055 | 50×55 | 1.8 | 6 | 9 | 100-110PCS |
| PXC-5060 | 50×60 | 1.8 | 6 | 9 | 110-125PCS |
| PXC-5080 | 50×80 | 1.8 | 8 | 10 | 180-200PCS |
| PXC-50100 | 50×100 | 2.1 | 8 | 10 | 220-250PCS |
| PXC-6025 | 60×25 | 1.5 | 6 | 9 | 45-60PCS |
| PXC-6040 | 60×40 | 1.5 | 6 | 9 | 90-100PCS |
| PXC-6060 | 60×60 | 1.8 | 6 | 9 | 140-160PCS |
| PXC-6080 | 60×80 | 1.8 | 8 | 10 | 250-300PCS |
| PXC-60100 | 60×100 | 2.1 | 8 | 10 | 230-270PCS |
| PXC-6525 | 65×25 | 1.5 | 8 | 10 | 100-110PCS |
| PXC-6545 | 65×45 | 1.5 | 8 | 10 | 180-200PCS |
| PXC-6565 | 65×65 | 1.8 | 8 | 10 | 200-220PCS |
| PXC-7550 | 75×50 | 1.8 | 8 | 10 | 140-160PCS |
| PXC-8025 | 85×25 | 1.5 | 6 | 8 | 60-70PCS |
| PXC-8035 | 80×35 | 1.5 | 6 | 8 | 160-180PCS |
| PXC-8040 | 80×40 | 1.5 | 6 | 8 | 100-120PCS |
| PXC-8045 | 80×45 | 1.5 | 6 | 8 | 180-200PCS |
| PXC-8050 | 80×50 | 1.5 | 6 | 8 | 200-220PCS |
| PXC-8055 | 80×55 | 1.8 | 6 | 10 | 240-290PCS |
| PXC-8060 | 80×60 | 1.8 | 6 | 10 | 250-300PCS |
| PXC-8080 | 80×80 | 1.8 | 8 | 10 | 280-350PCS |
| PXC-80100 | 80×100 | 1.8 | 8 | 10 | 300-400PCS |
| PXC-10033 | 100×33 | 2.1 | 10 | 12 | 110-120PCS |
| PXC-10040 | 100×40 | 2.1 | 10 | 12 | 130-180PCS |
| PXC-10050 | 100×50 | 2.1 | 10 | 12 | 210-250PCS |
| PXC-10060 | 100×60 | 2.1 | 10 | 12 | 230-270PCS |
| PXC-10080 | 100×80 | 2.1 | 10 | 12 | 300-380PCS |
| PXC-100100 | 100×100 | 2.1 | 10 | 12 | 300-400PCS |
| PXC-130100 | 130×100 | 2.1 | 10 | 12 | 350-500PCS |
