Terminal Blocks TBS-3A
CHS
Size: | |
---|---|
Availability: | |
Quantity: | |
Product Description
Material:
◆ PE,Application Termperature:- 40℃ to 65℃, short time is 80℃.
◆ PP,Application Termperature:- 30℃ to 90℃, short time is 110℃.
◆ PA,Application Termperature:- 35℃ to 120℃, short time is 140℃.
◆ Brass,Iron screw.
◆ Voltage:250 - 450V

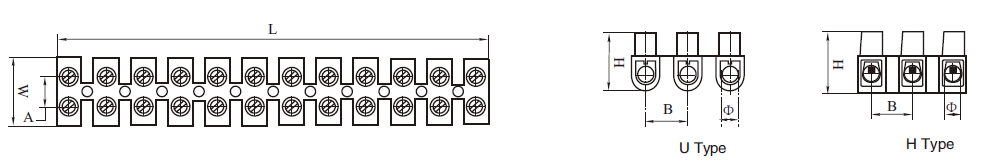

通用U型接线端子 U Type
编 号 Item NO. | L(mm) | W(mm) | H(mm) | A(mm) | B(mm) | 孔径Φ(mm) | Rated Voltage | Rated Current | Wire Range |
TBS-3A | 90.3 | 15.5 | 11.5 | 6 | 7.7 | φ3.0 | 380V | 3A | 2.5-4.0mm² |
TBS-6A | 110.5 | 15.5 | 12.4 | 6.5 | 9.5 | φ3.2 | 380V | 6A | 4.0-6.0mm² |
TBS-10A | 116.7 | 20 | 14.9 | 8 | 10 | φ4 | 380V | 10A | 6.0-10.0mm² |
TBS-16A | 136.8 | 21.5 | 16.7 | 10 | 11.7 | φ4.2 | 380V | 16A | 10.0-12.0mm² |
TBS-20A | 153.5 | 24.5 | 17.4 | 11.5 | 13.2 | φ4.3 | 380V | 20A | 12.0-14.0mm² |
TBS-30A | 164.6 | 25 | 18.8 | 12 | 14.1 | φ5.5 | 380V | 30A | 16mm² |
TBS-60A | 187.6 | 29 | 23.5 | 12 | 16 | φ6.8 | 380V | 60A | 25mm² |
TBS-80A | 205 | 33 | 27 | 15 | 17 | φ7.0 | 400V | 80A | 35mm² |
TBS-100A | 250 | 46 | 31 | 22 | 21 | φ9.0 | 400V | 100A | 40mm² |
通用H型接线端子 H Type
编 号 Item NO. | L(mm) | W(mm) | H(mm) | A(mm) | B(mm) | 孔径Φ(mm) | Rated Voltage | Rated Current | Wire Range |
TBS-3A | 90.8 | 15.5 | 12.4 | 6 | 7.8 | φ3.0 | 380V | 3A | 2.5-4.0mm² |
TBS-6A | 111.4 | 15.5 | 13.5 | 6.5 | 9.6 | φ3.2 | 380V | 6A | 4.0-6.0mm² |
TBS-10A | 116.4 | 20 | 15.3 | 8 | 10 | φ4 | 380V | 10A | 6.0-10.0mm² |
TBS-16A | 133.8 | 22.7 | 16 | 10 | 11.5 | φ4.2 | 380V | 16A | 10.0-12.0mm² |
TBS-20A | 152.2 | 24.6 | 16 | 11.5 | 13.2 | φ4.2 | 380V | 20A | 12.0-14.0mm² |
TBS-30A | 162 | 25 | 19.3 | 12 | 13.9 | φ5.5 | 380V | 30A | 16mm² |
TBS-60A | 184.6 | 28.6 | 23 | 12 | 15.8 | φ6.8 | 380V | 60A | 25mm² |
